ResiSHIELD DH0304E-M Fire Sprinkler Pump Set

ResiShield Brochure

ResiShield Manual

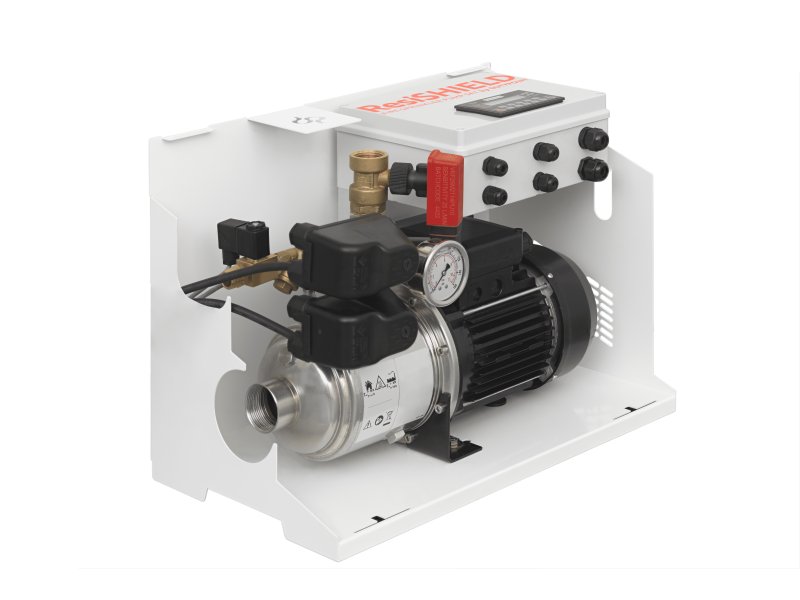

ResiShield DH0304E-M Domestic Sprinkler Booster Set

A compact and fully pre-assembled fire pump sets to suit small to large domestic sprinkler systems, all fully compliant with the most recent BS9521:2021 regulations, the ResiShield is a space-saving and high performance solution for any property.

With a flow range of between 30 and 200 litres per minute all on a range of 1 to 5 bar and housed within an aesthetically pleasing powder-coated mild steel enclosure, our range of fire sprinkler pumps are capable of providing ultimate protection from accidental damage. With the steel enclosure being removable for easy maintenance and access as well as being wall mountable the ResiShield is a versatile and effective solution that is fully compliant with BS 9251:2021 for Cat 1 sprinkler systems.

This range also comes with high-quality cast stainless steel manifold assembly, volt-free contacts included for fire alarm and a range of faults Intuitive LCD controller with full number keypad as standard that makes set up and commissioning quick and user-friendly.

This pump set can be connected directly to the mains water supply (subject to local water authority approval) or we can also provide the ideal break tanks / water tanks to provide the stored water if needed (common models are available from stock).

*Please ensure the pump duty has been specified by a sprinkler specialist to ensure compliance between the goods and British Standards

Product overview:

– Housed within an aesthetically pleasing powder-coated mild steel enclosure, providing ultimate protection from accidental damage
– Removable front cover for easy maintenance access
– Wall mountable
– Fully compliant with BS 9251:2021
– High-quality cast stainless steel manifold assembly
– Volt-free contacts included for fire alarm and range of faults
– Intuitive LCD controller with full number keypad makes set up and commissioning quick and user friendly
– Can be connected directly to the mains water supply (subject to local water authority approval)
– Common models are available from stock

Pump Build Specification:

– Duplex Stainless Steel Manifold

– Brass non-return valve

– Brass pump casing

– AISI 304 stainless steel pump impellers

– Powder-coated mild steelbase plate and enclosure

• Product Code: DPT
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Outlet Size: 1" BSP Female
• Twin or Single: Single
