IBC Container Heater

User Manual

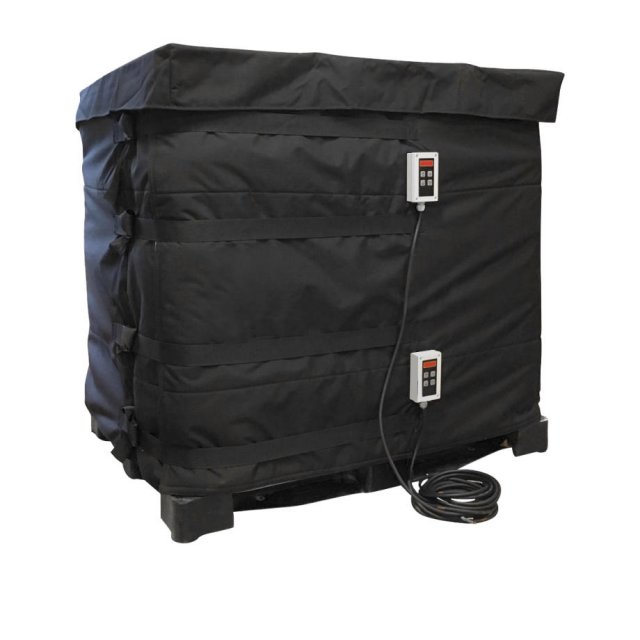

IBC Container Heater 2 x 1000W

When at room temperature, many materials often become viscous, which makes them harder to discharge from an IBC (Intermediate Bulk Container). In specific syrup, sugar, fats and others are difficult to discharge and often result in wasting products due to the thick viscosity not being able to leave the container. This can end up being an expensive process unless you heat the (IBC) container first to make materials smoother and less viscous.

An IBC container heater is the perfect solution when it comes to quickly and effectively heating up fluids and materials, making them very easy to empty from a container with minimal to no waste product. The IBC heater is produced with either 1, 2 or 3 thermostats, all adjustable from 0 - 90°C, making the container heater very fast and safe to heat liquids and maintaining the wanted viscosity for the content in the container. The heater is designed in a durable and long-lasting high quality lightweight design and the construction together with quick release buckles makes the container heater easy to attach to any standard 1000L container.

This also makes this heater perfect to use when transporting 1000L containers with content that requires specific temperatures or viscosity. For a faster heating process, we recommend using the IBC insulated lid (sold separately), that easily attaches to the top of the container, reducing waste of heat. Container heating jackets are an ideal supplement to container heating cabinets, where the jacket is mounted to a single container. The container heating jackets can also be used in conjunction with heating cabinets or heating ovens, making transportation of a heated container much easier and the heat loss minimal to none. The container heater can be used to heat a variety of liquids, e.g. water, resin, oil, diesel fuel and many other industrial liquids and allows them to be poured or pumped with ease.

Technical specifications:

• Polyester material
• Polyester inner.
• Silicone insulated spiral wound resistance element
• Adjustable quick release buckles.
• Warm-up duration approx. 48h (1000L drum with water starting from +15º C to +50º C with 2x1000 W heaters and isolation lid).
• 3 meter power cable with w/o power connector.
• Insulation lid sold separately.
• Up to 3 thermostats, 0-90ºC
• IP40.
• Dimensions: 4400mm x 1000mm
• Voltage: 230V

Ideal for heating up:

• Water.
• Oils and also diesel fuel.
• Resin.
• Vaseline.
• Wax, e.g. lanolin (wool wax or wool grease).
• Fats.
• Butters e.g. Ghee.

*Please note, the Insulated Lid is sold separately and is used for illustrating purposes on the main image
