Hippo 100 Sewage Pump, Horizontal Discharge

Hippo data sheet

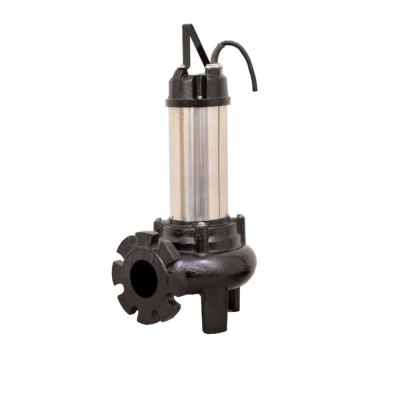

HIPPO 100  Sewage Pump with horizontal discharge

Submersible Pump (Nom. HP 1.0)

Applications:

For heavy-duty applications with soiled biological wastewaters, sewage, and rainwater

For both domestic and professional use

Operating Limits

• Viscosity of treated fluid : 1 mm²/s Density of treated fluid : 1 kg/dm3 Max starts per hour : 20
• Available in 230V single phase (Auto or Manual) and 400V three-phase models.
• Hippo submersible pumps have been designed for arduous dirty water and sewage type applica­tions.
• A guide rail option is available on all Hippo pumps.
• They feature recessed vortex impellers provid­ing a 50 mm diameter. Solids handling capability.
• Hippo 50 and 100 also available in 110/1 / 50 Nominal 0.37 to 1 .5kW (0.5 to 2HP)
• Thermal protector 1- Overload protector 3-
• Double mechanical seal (Ca/Ce + Sic/Sic)
• Oil bath with oil seal Cast iron/Stainless steel construction
• Maximum operating temperature 40 °C
• 1 OM H07RN-F cable as standard
• 3/4" Guide rail is available.
