GRP Booster Set Grand Enclosure PWHG.4x2.5x2.5



Product Ref: PWHG.4x2.5x2.5

Customer Offloading GRP Rectangle Made to Order, Non Returnable Product Made to Order, Non Returnable Product
  • Weight: 350.000kg
  • Estimated Lead time: 10-14 Working Days

    Custom Delivery Required

    Delivery price on application.

    Choose option:
    Choose option:

    updown
    from £11,850.00 ex VAT
    (£14,220.00 inc VAT)
    monduB2B Pay Later & Instalment OptionsLearn more

    What is Included in the Electrical Fit Out Packs

    Electric Fit Out Kit A

    • Light Switch on opening leaf x 1
    • Double Socket 13A 240v RCD x 1
    • 58W x 1500 Fluorescent tubes in IP56 Fittings x 1
    • LV distribution board 2 way 100A SP MCB board x 1



    Electric Fit Out Kit B

    • Light Switch on opening leaf x 1
    • Double Socket 13A 240v RCD x 1
    • Double Socket 13A 240v x 1
    • Un-swiitched Fused Spur x 1
    • Switched Fused Spur x 1
    • 58W x 1500 Fluorescent tubes in IP56 Fittings x 3
    • LV Distribution board 5 way 100A SP MCB board x 1



    Electric Fit Out Kit C

    • Light Switch on opening leaf x 1
    • Double Socket 13A 240v RCD x 3
    • Double Socket 13A 240v x 1
    • Un-swiitched Fused Spur x 25
    • 58W x 1500 Fluorescent tubes in IP56 Fittings x 3
    • LV Distribution board 5 way 100A SP MCB board x 1
    • Tube Heater C/W Thermostat x 1



    Please note, all the above packs are based on Installation with the enclosures at the factory prior to delivery. If installation is required on site, please contact us, as this will incur additional costs

    Product Description

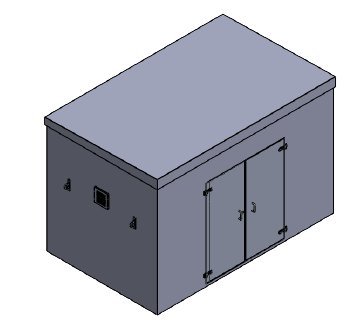

    GRP Booster Set Grand Enclosure PWH.4x2.5x2.5

    Our GRP enclosures are suitable for the protection of a number of items of industrial equipment, including our own water storage tanks, pump sets, valves in fact there is a housing to suit virtually any industrial product.
    Used by Gas, Water and Electricity providers and local authorities along with the Mechanical services industry and many others.


    General Construction

    Our GRP housings are manufactured from the highest quality GRP materials to withstand the rigours of the harshest weather conditions.

    All enclosures have a tough weather resistant polyester gel coat outer, reinforced with a GRP laminate incorporating an encapsulated polyurethane foam core to provide insulation. External colour options are RAL6005 Green or BS 00A05 Industrial Grey. Other colours are available on request.

    Insulation is 18 mm thick as standard. This can be increased to 50 mm for extreme temperature applications.

    Internal finish is a durable polyester gel coat finish in white.

    Configurations start as small as 1860 x 1860 x 2000 mm high, up to infinite size.

    Available as one-piece units for smaller applications or in sections in 500 mm increments in length and width up to a height of 3 metres.

    Door furniture includes stainless steel hinges and fixings, Yale type night latch lock assemblies, External door handles, internal door check straps and stays.



    Features and Benefits

    • One-Piece Construction requiring no on-site assembly
    • Low maintenance, durable construction
    • Locking door with Cylinder night latch
    • Internally flanged to allow fixing down to foundation
    • Available in a range of external colours to allow matching with other equipment



    PWHG.4x2.5x2.5 (18mm Insulation) Dimensions

      L x W x H (mm)
     Internal Dimensions 3860 x 2360 x 2500
     External Dimensions 4075 x 2575 x 2700
     Door Configuration Double 1800 x 2000 High
     Internal Ply mounting Board Included 1220 x 1220
     Louvered Vents 2 x Included 300 mm x 300 mm
     Lifting Eyes 4 Included



    PWHG.4x2.5x2.5 (50mm Insulation) Dimensions

      L x W x H (mm)
     Internal Dimensions 3700 x 2200 x 2500
     External Dimensions 4075 x 2575 x 2700
     Door Configuration Double 1800 x 2000 High
     Internal Ply mounting Board Included 1220 x 1220
     Louvered Vents 2 x Included 300 mm x 300 mm
     Lifting Eyes 4 Included



    Protection and concealment of a range of products

    • Water Storage Tanks
    • Pump Stations and Booster Sets
    • Water treatment equipment
    • Electrical Equipment
    • Control Equipment for the water supply and waste water industry
    • RPZ Valve Protection



    Product range

    • Smaller GRP enclosures are available as a single piece unit, which are normally delivered to site palletised and only require fixing down to a structural slab or raised kerbing.
    • Larger enclosures are constructed in a metric modular format and can be assembled at our works for delivery as a single unit or, where access restrictions apply, be supplied in sections to allow assembly on site.
    • On site assembly is carried out by our own, directly employed engineers. Purewater do not use subcontract labour for enclosure assembly.



    Accessories

    • Encapsulated ply backing boards for electrical components and switchgear.
    • Screened spill over screens to the housing walls (to comply with water regulations, back flow prevention).
    • Factory prepared pad areas to allow for pipework to pass through housing walls.
    • Single or double door assemblies.
    • Access man ways to housing roof for applications where space restrictions apply.



    *Please note that the booster set is not included with this unit, it's the enclosure only


    Enquiries

    Please contact us and let us know the size of the GRP housing or enclosure required along with any site specific details, such as access restrictions which may apply, and we will be happy to provide a detailed quotation.



    Delivery

    All our GRP Grand Enclosures are for delivery by 26t HIAB only, so will need suitable access for this size of vehicle. Please contact us for price for delivery to your location.

    Product Details

    • Product Code: PW
    • Customer Offloading: Customer Offloading
    • Material: GRP
    • Shape: Rectangle
    • Stock tank: Made to Order, Non Returnable Product

    Delivery

    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.

    Offloading

    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

    HIAB

    HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

    If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

    Returns Information

    Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Tanks Direct's return policy now.
