Aquamatic AMV2-FE 2.5L/sec at 3.0 Bar

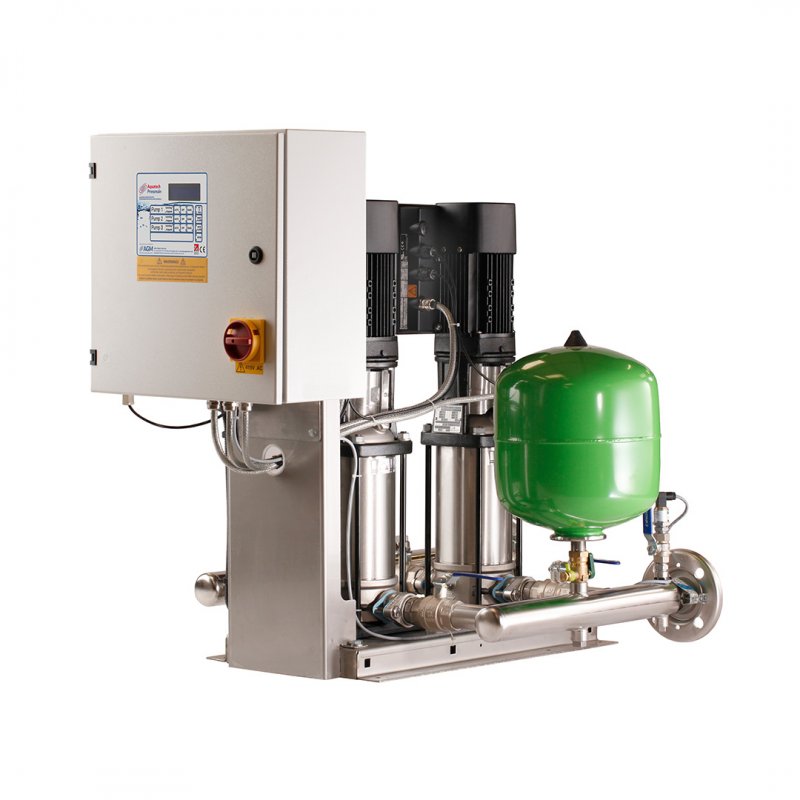

AQUAMATIC AMV-FE-6-6 2.5 L/sec at 3.0 Bar Domestic Water and Fire Sprinkler Booster Set (415v)

The Aquamatic domestic water and fire sprinkler booster pump sets are ideal for any size of domestic setting where water flow is low and sprinkler systems are required, this model operates in a DUTY / STANBY configuration. This product has a prefitted and fully compliant "Fire Press" mode where a combined domestic and residential mode where a combined domestic and residential sprinkler booster set is needed to integrate into systems designed in accordance with BS9521:2021 regulations, all whilst using top of the range Grundfos pumps to ensure a quiet and efficient system. The system is also full WRAS approved and department of Health HTM 04 Guidance for Safe Water in Healthcare Premises compliant.

With a flow range of from 0.2m3 all the way up to 172.8m3 per hour all on a range of 1 to 14 bar, our range of domestic water and fire pumps are capable of providing day to day domestic water requirments whilst also giving industry grade and recognised fire surprssion.

This pump set will require a break tank / water tank to provide the duty required, if this is also needed please don't hestiate in letting us know if this is also needed.

*Please ensure the pump duty has been specified by a sprinkler specialist to ensure compliance between the goods and Bristish Standards

Product overview:

• Energy Efficient Variable Speed Blueflux® motorsto EuP IE3 grade (0.75kW to 2.2kW motorsexceed EuP IE4 grade)

• ‘2020Plus’ Microprocessor/Transducer Control for long term reliability and accuracy with ‘REPRESS’ hydraulic shock system protection

• Automatic Cascade Control for all pumps

• User Friendly Keypad & illuminated 2 line LCD Display for ‘Plain English’ information for both system status and system pressure

• Electronic Low Water Cut-Out for pump dry running protection, with auto re-start upon water restoration

• All pumpsets are WRAS approved and are ECA Energy Technology Listed Product

• BMS Volt Free Enhanced package fitted as standard

• Built to Latest CE Requirements and in accordance with ISO9001

• 304 Stainless steel pipework as standard

• Flows and Heads to client’s requirements

• BS9251 ‘Fire Press’ mode for combined domestic and sprinkler systems

• Soft start / slow fill

• Temperature range 5°C to 30°C
