800 Litres POLY above ground Grey water pump station
Product Ref: PAG800S/6VX
Product Description

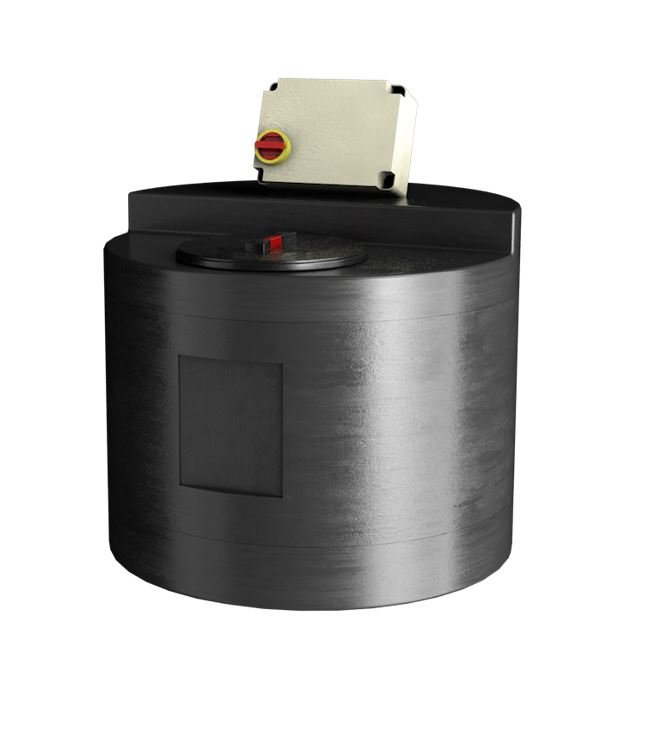

800 Litres POLY Above ground Single Grey Water Pump station
The complete kit for collection of grey water, however, not suitable for foul or sewage waste from toilets. This system is delivered to site as a complete package, including all the internal pipework and the drainage pump. Designed for easy installation, in mind. Delivered as a complete package, including all internal pipework and the drainage pump.
A small, compact water pumping station, suitable for residential, commercial, industrial and office/professional spaces.
Grey Water Pumping Station includes:
- MDPE chamber
- Soft close Non-Return Valve
- Internal 2'' PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
Model Ref | 6VX | 10VX | MC |
---|---|---|---|
Impeller Type | Vortex | Vortex | Macerator |
Power Supply | 230
~1ph~50hz |
230
~1ph~50hz |
230
~1ph~50hz |
Rated Power | 0.37kW | 0.75kW | 1.2kW |
Rated Current | 1.9A | 4.0A | 9.2A |
Max Head | 6 m | 10 m | 16 m |
Max Flow Rate | 5.5l/s | 7.9l/s | 1.8l/s |
Cable Length | 10 m | 10 m | 10 m |
Free Passage | 50 mm | 50 mm | Macerator |
Optional extras
- High Level Alarm
- Telemetry Alerts
- Battery Backup
Optional extras explained
High Level Alarm - Recommended to prevent the unit becoming too full. Installed to alert high fluid levels in the unit when connected to a float switch.
Telemetry Alerts - Designed to alert you of any issues within the system
Battery backup - Ensure the pump(s) would operate in the event of a mains power outage.
As the system is being installed above ground, you will need to check the levels to ensure you can achieve a gravity fall into the chamber.
Delivery
All our Above ground units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
Product Details
- Product Code: DPT
- Customer Offloading: Customer Offloading
- Diameter: 1000mm
- Material: MDPE
- Tank Use: Above Ground
- Twin or Single: Single
Delivery
Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.
Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland
Our lead times should only be used as a guide and are subject to change.
Offloading
Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.
We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.
HIAB
HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.
If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.
Returns Information
Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.
Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **
All Items must be returned unused, refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).
If you wish to return goods, please complete the form on this page to provide further information.
Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.
Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.
Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
