Sewage Treatment System Matrix 6 Person Gravity *(Free Site Survey Subject to Site Location)


For any application, be it domestic, residential, commercial or industrial, where there is no access to a mains sewer by gravity or by pumping, the MATRIX sewage treatment plant provides an extremely safe, efficient, reliable and cost-effective solution to sewage disposal.

The design of the MATRIX system takes into account all those aspects that have been found to be important to domestic and commercial customers alike and is fully tested and CE certified to BSEN12566-3, which is a mandatory requirement, achieving industry leading test results in both process and structural efficiency. There are no mechanical components within the treatment plant itself, thereby ensuring the maintenance is minimal, simple and safe.

All Matrix treatment plants have a standard inlet invert depth. Integral pumped discharges can also be provided with all units, eliminating the need for additional tankage and installation costs. All Matrix systems are complete with failure alarms as standard (as required by BSEN12566-3). The MATRIX treatment system is a three stage biological process contained within a single tank structure, based on the principles of a submerged bed reactor and designed in accordance with the requirements of BS6297.

MATRIX Benefits: Ask about the possibility of a free site survey and technical proposal with no obligation.

• Full technical back up and customer service support.
• Single tank installation to minimize costs.
• Failure alarm systems as standard, not at additional cost.
• No mechanical or electrical parts within the unit.
• Robust Polypropylene construction for easy and cost-effective installation.
• No visual intrusion. Flat, flush ground level covers suitable for 1 tonne load.
• Simple installation in vehicular areas, up to D400 loading.
• Low running and maintenance costs.
• Integral discharge pumps where required (all models) no additional tank.
• Deep inlet inverts available to avoid pumping crude sewage to plant.

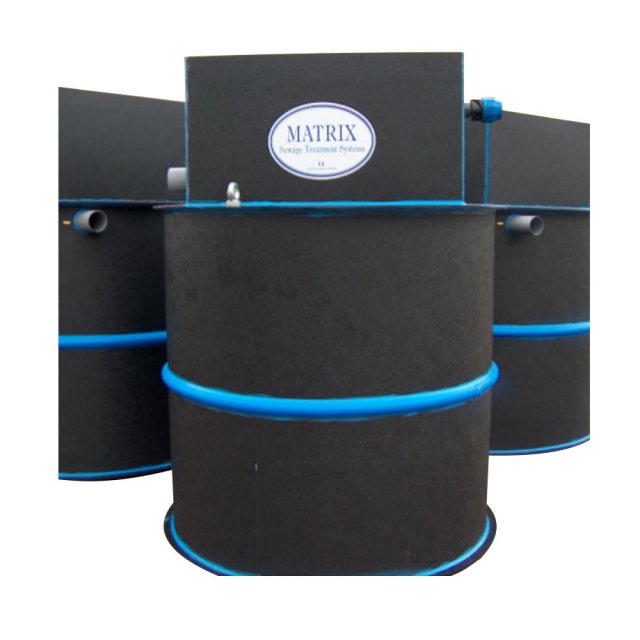

CLF Unit


The MATRIX system comprises the CLF unit itself and an enclosure containing an air blower unit, and comes complete with 10 m of airline.
This comprises a single tank containing all the components required for the sewage treatment process. The CLF tank is manufactured in Polypropylene and is supplied in a standard black/blue colour. It is completely impervious to water and sewage and has been designed to ensure a robust construction and a long service life. The tank is provided with a locking manhole cover providing access to all parts of the unit. An air diffuser is installed into the submerged filter bed(s) and is located underneath the filter bed(s) this is connected to the external air supply (blower) by uPVC pipework.

Blower
The blower is mounted along with its associated electrical controls inside a weatherproof enclosure. The electrical controls comprise an isolator and a loss of air alarm connected to an external beacon which will provide a visual warning that the blower is not operational.

Delivery

All our CLF units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: C and L
• Colour: Black
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 1500mm
• Lid Size: 900
• Outlet Size: 110mm
• Tank Use: Below Ground, Sewage
