5000 Litre GRP Pump Enclosure with built in Tank, CAT 5 AB air gap



Product Ref: CU3.5000AB

Customer Offloading GRP Potable Made to Order, Non Returnable Product Made to Order, Non Returnable Product Yes
  • Volume: 7100ltr
  • Dimensions: L:3600mm W:2000mm H:2250mm
  • Custom Delivery Required

    Delivery price on application.

    updown
    from £11,765.00 ex VAT
    (£14,118.00 inc VAT)
    monduB2B Pay Later & Instalment OptionsLearn more

    Downloadable Documents

    Product Description

    GRP Tank Combination Unit 5000 Litre, CAT 5 AB air gap

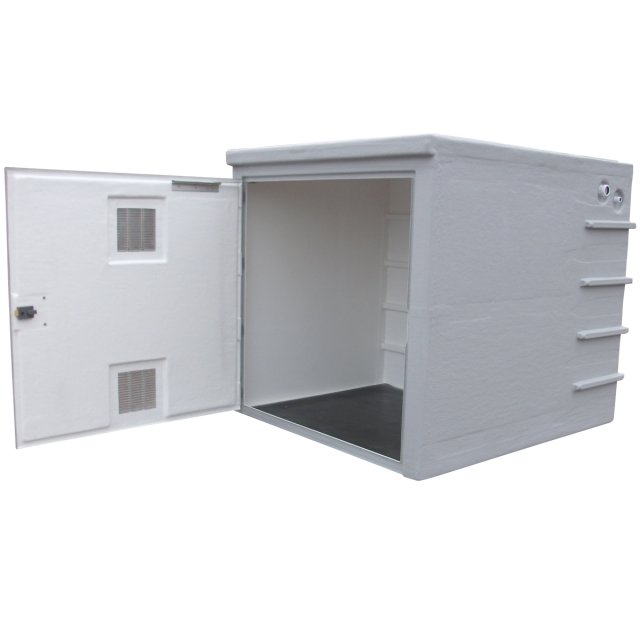

    The unit is designed as a single piece item with an internal dividing wall at full height. One internal section being the wet compartment for the stored water which is accessed via a lid mounted lockable manway. Beyond the internal dividing wall is the dry side where the booster set is to be positioned. The internal dividing wall has the inlet and outlet connection within it, the overflow, warning pipe and screened spill over weir terminate through the wet side wall to outside and do not therefore normally require any additional pipework. The dry side is accessed by a large 1600 x 1600mm hinged and lockable door, which is fitted with louvered vents to ensure adequate ventilation.

    If chosen with the Foundation Skid the whole unit is mounted and fixed too a fully welded galvanised steel skid which allows offloading and movement on site by fork lift struck. The principle is to provide the unit to the booster set manufacturer where the booster and associated electrical equipment can be fitted. The completed unit can then be delivered to site where once positioned it requires the simple connection of the mains pipework, outlet pipework to the services, and electrical supply, making it a "plug and play' unit requiring minimal onsite installation.

    All units are fitted with the following:
    1 No 50mm screened lid vent
    1 No single 1600 x 1600mm door to the end face of the pump compartment
    1 No lockable access manway fitted to the roof of the wet compartment.
    1 No EPDM mat to the floor of the pump compartment
    A fully encapsulated ply base.
    Units do not include electrical components, wiring, pump sets, control equipment, connections of any kind or internal pipework.
    Units not fitted with a galvanised steel skid are suitable for positioning onto a structural pad only which should be flat, level and continuous and be +/- 2mm over the surface area.
    Units not fitted with a galvanised steel skid have an external height 200mm less than stated in the overall dimensions column of this document

    Availability 5-6 weeks

    **Cat 5 (AB and AG) supplied loose

    AG Airgap
    IP22-AG-SL
    42mm screened lid vent
    22mm equilibrium float valve
    35mm screened overflow
    22mm screened warning pipe

    IP28-AG-SL
    42mm screened lid vent
    28mm equilibrium float valve
    42mm screened overflow
    22mm screened warning pipe

    IP35-AG-SL
    42mm screened lid vent
    35mm equilibrium float valve
    50mm screened overflow
    22mm screened warning pipe

    IP42-AG-SL
    42mm screened lid vent
    42mm equilibrium float valve
    67mm screened overflow
    22mm screened warning pipe

    IP50-AG-SL
    50mm screened lid vent
    50mm equilibrium float valve
    80mm screened overflow
    22mm screened warning pipe

    AB Airgap
    IP22-AB-SL
    22mm screened lid vent
    22mm equilibrium float valve c/w drop arm and float
    35mm screened overflow
    22mm screened warning pipe

    IP28-AB-SL
    22mm screened lid vent
    28mm equilibrium float valve c/w drop arm and float
    42mm screened overflow
    22mm screened warning pipe

    IP35-AB-SL
    22mm screened lid vent
    35mm equilibrium float valve c/w drop arm and float
    50mm screened overflow
    22mm screened warning pipe

    IP42-AB-SL
    22mm screened lid vent
    42mm equilibrium float valve c/w drop arm and float
    67mm screened overflow
    22mm screened warning pipe

    IP50-AB-SL
    22mm screened lid vent
    50mm equilibrium float valve c/w drop arm and float
    80mm screened overflow
    22mm screened warning pipe

    CU3.5000AB Data
    Nominal Capacity 7100 Litres
    Actual Capacity Approx. 5000 Litres
    Overall Dimensions 3600 x 2000 x 2250mm high
    Wet Compartment 2200 x 1800 x 1800mm
    Pump Compartment 1200 x 1800 x 1800mm



    Product Details

    • Product Code: PW
    • Customer Offloading: Customer Offloading
    • Material: GRP
    • Potable: Potable
    • Stock tank: Made to Order, Non Returnable Product
    • WRAS: Yes
    • WRAS Approved: Yes
