4320 Litre AquaCUBE Rainwater Harvesting System
Product Ref: AQCB/4320/3
Downloadable Documents
Video
Product Description
4320 Litre AquaCUBE Rainwater Harvesting System
Designed to provide a pre-assembled, self-contained rainwater harvesting system, the aquaCUBE can be used across various builds, being new or exsting retrofit sites.
All pumps, filters and controls are included in the one unit, allowing simple and straight forward 'plug and play' installation.
Applications
- Toilets and Urinals
- Laundry
- Irrigation
- Vehicle and general cleaning

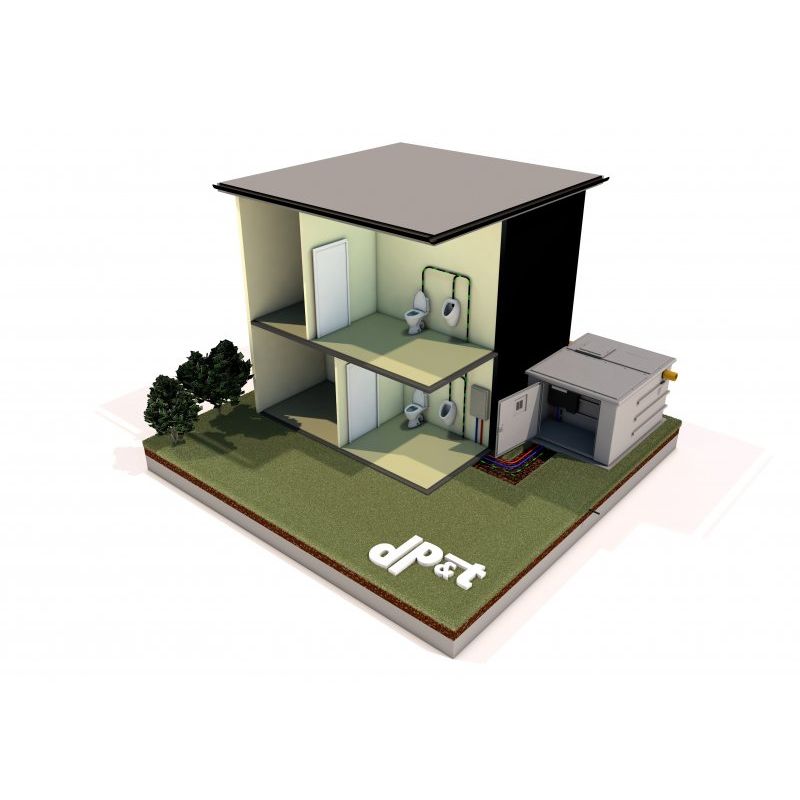

The AquaCube system has been designed to supply direct, pressurised water to your installed appliances, through the use of a single pump which is mounted away from the stored water container. The AquaCUBE will require the following services:
- Incoming rainwater supply from the roof
- Tank overflow should be fitted to a soak away or storm drain
- Main electricity supply
- Mains water supply for system top-up in low rainflall periods
- Pressurised rainwater from the system booster pump feed
- Control unit emergency warning pipe should be fitted so overflows are visible
Capacity (Litres) | 4320 |
Dimensions (mm) | 1500 H x 1500 W x 2500 L |
Weight (kg) | 375 |
Colour | Light Grey |
Rainwater Inlet Size | 110mm |
Rainwater Overflow Size | 110mm |
Pump Discharge | 1'' |
Power | 0.55kW / 3.9A |
Voltage | 220 - 240v |
Pump Type | AquaProf 40/50 |
AquaProf Pump
The AquaProf basic 40/50 system is used for rainwater management and distrubtion. It detects any faults in the water collection system, whether from ranwater or the mains and makes automatic corrections to ensure continued operation of the system.
Pump Specifications
- Liquid Temperature range from +5°C to +35°C
- Max.system pressure: Max 6 bar
- Max. Main pressure: Max 4 bar
- Minimum mians flow rate: 10 lpm
- Maximum height of highest use: 12m
- 230v Hz50 power supply
- Maximum power absorbed: W1000
- IP42 Protection rating
- Ambient Temperature: Min 5°C, Max 40°C
- GRP
- 3/4'' mains inlet pipe dimensions
- 1'' discharge pipe dimensions
- 1'' Suction pipe dimensions
- DN 50 over pipe dimensions
- 1000 m Max Altitude
- Max Power pump No.2 relay: 3'A_250volt
- Water type: ph 4-9
- ON/OFF float versions: N/OFF flaot with 20m cable
