3001 Litre GRP Above Ground Single Pump Station

Pump Station Commissioning

Full system inspection

Levels inspection

Manway check for obstruction

Mount control panel (if not in place)

Check correct load to panel

Check correct cable size

Check correct power supply

Set the overloads

Lower pumps via guiderail onto stools using an A-frame if required

Pull pump cables through ducting

Pull float cables through ducting

Set floats to correct operating position

Wire cables into control panel

Fill system with water

Full test of pump station

Sign-off and certification

Warranty and documentation provided

3001 Sewage Tank Data Sheet

Above Ground Sewage Pumping Station Data Sheet

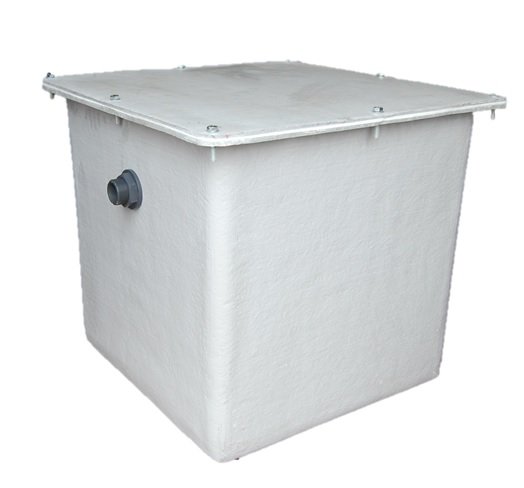

3001 Litre Above ground Single Sewage Pumping Station

The complete kit for use in areas where gravity flow is not available. This system is used for the transfer of sewage or waste water, all specially designed for easy installation.

A small, compact sewage pumping station, suitable for cellars, extensions, garden rooms and small applications, which consists of -

• Heavy duty Stainless Steel Submersible Sewage Pumps - available in 6m, 10m lift or Macerator.
• 50mm solid handling or macerator for peace of mind
• Complies to BS EN 12050-1:2001 / BS EN 752-6:1998 Standards

The 3001 Litre Above ground GRP (glass reinforced plastic) Sewage pumping station can pump up to 100m across to mains.

Sewage Pumping Station includes:

• 50mm Solids sewage pump - 6m, 10m lift or macerator
• 2094mm x 2094mm x 1593mm high grade GRP moulded basin (3001Ltr)
• Soft close Non Return Valve
• Internal 2" PVC (class C) discharge pipe work kit
• Seal for incoming and outgoing pipework (4" & 2")
• 12 months warranty
