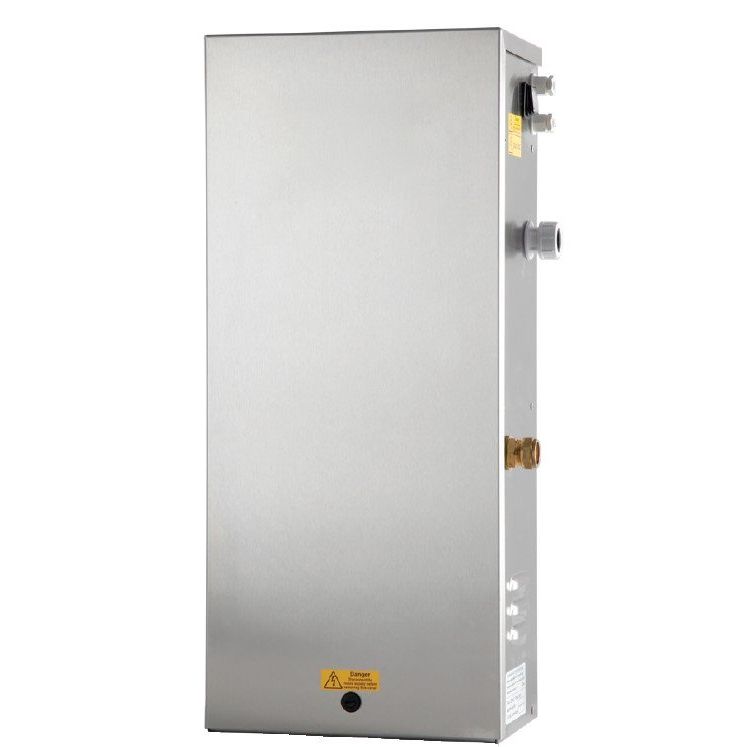

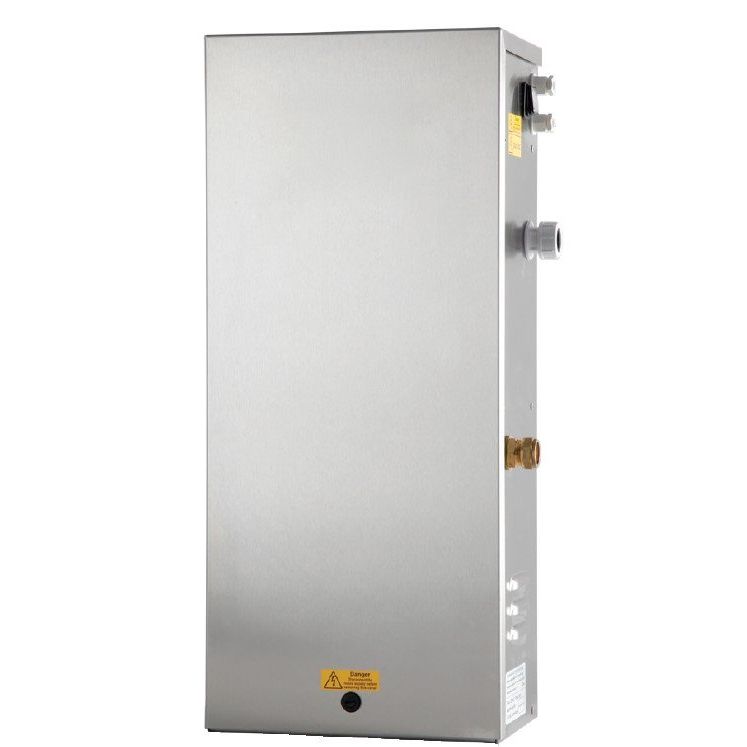

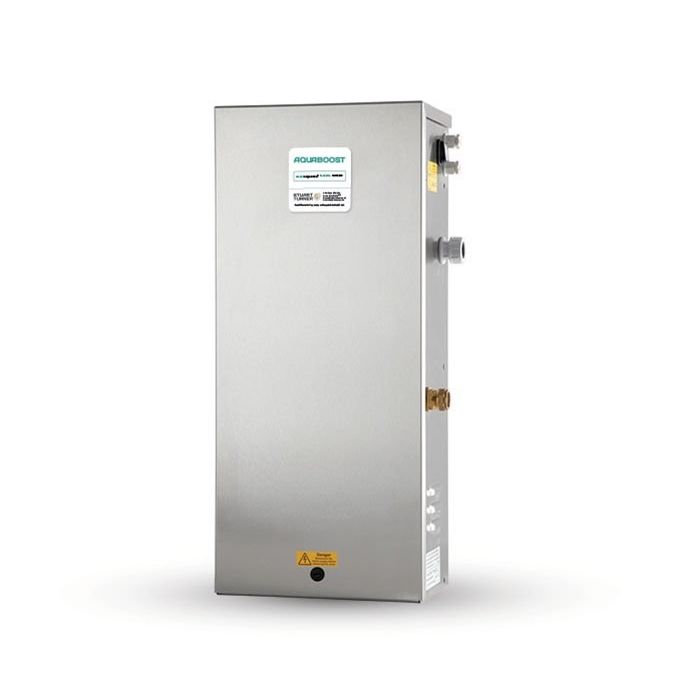

Dutypoint CAT5 Minibreak S
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
AB5 – CAT5 Aquabreak Unit
The Aquabreak is a complete, all-in-one unit, single outlet booster set incorporating single pump, pressure sensor, controller, control vessel, non-return valve and a 5 litre (nom) break tank fitted with a 1/2” solenoid valve and strainer. The electronic controller ensures that the pump starts automatically when water is consumed and stops automatically when the consumption ceases. In addition the controller protects the pump in case of faults.
All standard units are rated for CAT 3/4 fluids and are also available as a CAT 5 version making them suitable for use in high risk Category 5 fluid applications.
Features:
- 2 year warranty
- Type AB air gap
- Weir Overflow
- Durable Stainless steel enclosure IP54 (304 stainless steel)
- Boosts cold water mains supply to 4.5 bar, flow rates up to 12 l/min
- 5 litre (nominal) water storage capacity
- Quiet operation
- WRAS Approved Product
- High flow, low noise equilibrium fill valve
- Dry run protection
Applications
Boosting cold mains water pressure and flow in laboratories, stables, kennels, waste bin stores and wash down stations.
| Manufacturer | Stuart Turner |
| Manufacturer's Warranty | 2 years* |
| Pump Type | Variable speed |
| Water Tank Nominal Size | 5 Litres |
| Water Tank Usable Capacity |
4 Litres |
| Dimensions (wiIXO-DTh x depth x height) | 617 x 206x 700mm |
| Weight (including fittings) | 12.5 kg |
| Power Cable Length | 3 m (pre-wired) |
| Max. Head - Closed Valve (metres) | 45 m |
| Max. Flow (Litres per minute) | 12 L/min |
| Max. ambient Air Temp. (continuous) | 35 °C |
| Power Supply | 240 V / 1 Phase / 50 hz |
| Motor Type | Induction motor (auto-reset thermal trip) |
| Current - full load | 1.7 amps |
Delivery
All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
| Capacity | 5 litres |
|---|---|
| Dimensions (W×L×H) | 617 × 26 × 7 mm |
| Empty Weight | 13 kg |
