Sewage Pumping Station 1800Dia Twin Rigged 7300 Litre

Sewage Pumping Station 1800Dia Twin Rigged 7300 Litre

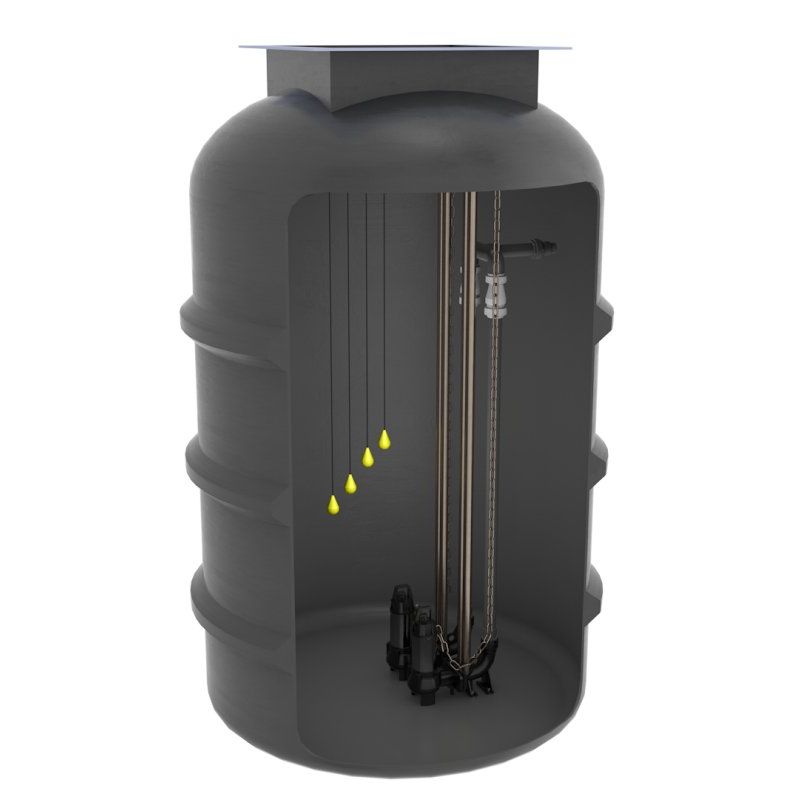

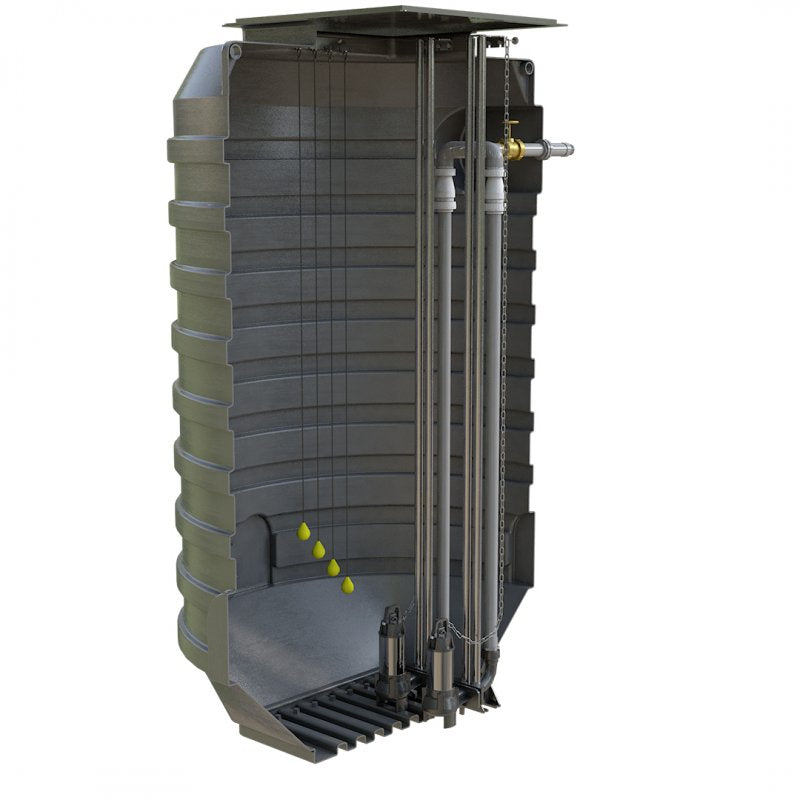

Twin Rigged GRP - Package Sewage Pumping Station. A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24-hour storage capacity and are manufactured to BSEN752-6 standards. The Twin Rigged 7300 Litre Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, with the system also used for the transfer of sewage or waste water, all specially designed for easy installation. The Twin Rigged 7300 Litre Pump station is a compact sewage pump station suitable for small to large houses and also commercial applications. The Twin Rigged Pump Station is available in 5000/6000/7300 Litre capacities and is particularly suitable when water or sewage is collected lower than the main sewer.

All you need is supplied to you within the package, so you will just need to supply the pipework to and from the station, plus any fittings. A high water alarm is supplied as standard. The Pumping Station comes with a submersible pump with 50 mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.

Pump:

• Cast iron / stainless steel construction
• 50 mm (2") solids handling capacity - 50 mm Macerator – 65 mm solids handling – 80 mm solids handling.
• Coolant filled motor
• Mechanical seal
• 10 M cable
• Max 6 M lift
• Max flow 5 L/sec
• Float switch as standard
• Controls
• Twin control panel, c/w auto change over and high level alarm
• 4 x 10 M float controls
• 1 x float bracket

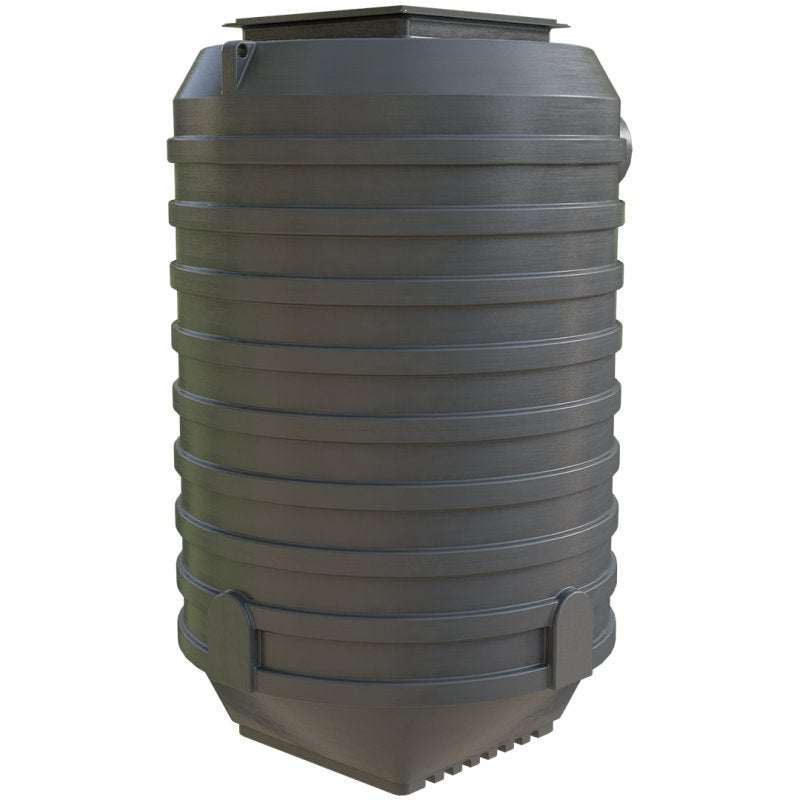

Tank:

• GRP tank.
• Dim: 1.8dia x 2.0deep – 1.8dia x 2.5deep – 1.8dia x 3.0deep
• Capacity: 5000,6000,7200 Litres
• 1 x 110 mm / 160 mm inlet seal to allow inlet to be drilled on site.
• 100 mm cable duct.
• 2" – 3” internal pipe work
• 2" – 3” non-return valve
• 2" – 3” quick release coupling
• 110 mm cable duct

Delivery

All our Sewage Pumping Stations are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.
