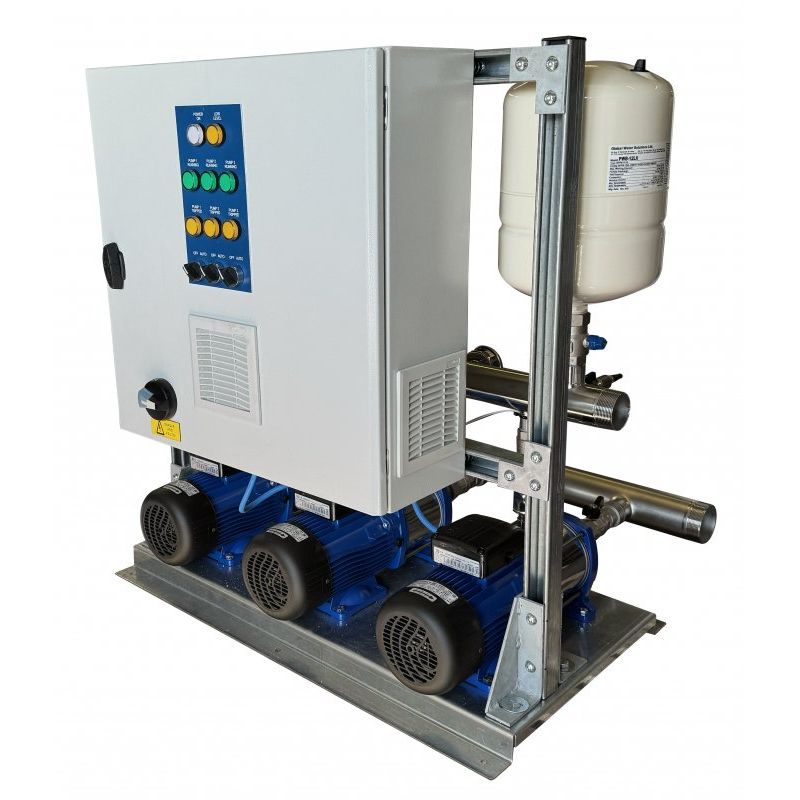

Ebara Triple Variable Speed Booster Set, 225l/min @ 7 Bar With BMS Panel
Estimate delivery costs
Your postcode helps us show you accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it is not stored or shared.
Ebara Triple Variable Speed Booster Set, 225l/min @ 5.0 Bar With ARC Bms panel
The ARC Panel Booster Set

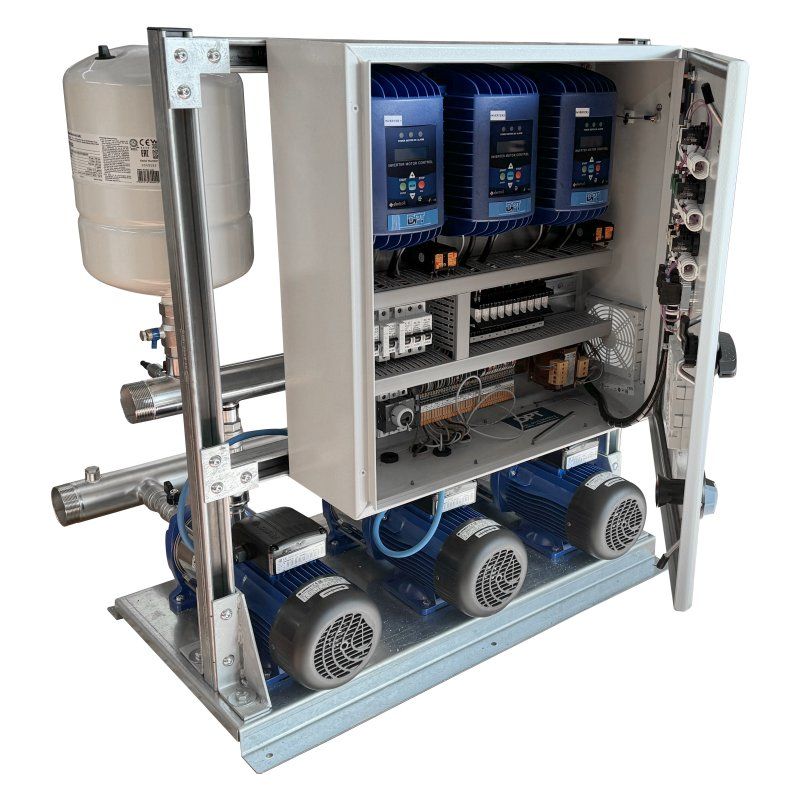

The ARC Panel Booster Set is an advanced and cost-effective cold-water booster set ideal for residential, commercial, and industrial applications. Despite is compact design, the ARC Panel Booster Set includes advanced features including fault signals and error code display as standard. The ARC Panel Booster Set uses the ARC variable speed inverter(s) which are installed within the control panel of the booster set. The inverter(s) regulate the rotational speed of the pumps using the electrical frequency. The inverter operates at a minimal value that meets the user’s specific demand.
In simple terms, once the pressure drops, the inverter recognises the drop in pressure and instructs the pumps to increase speed to meet the proportional demand.
The ARC Panel Booster Set works in a "master/slave" arrangement and shares operational duty in 60-minute cycles, this ensures joint usage across the system.
Applications
- Building services
- Water lifting and handling
- Air conditioning
- Irrigation
- Heating Washing systems
Panel Features
- Pump fault alerts
- Low level warnings
- Dry Run warnings
- Visual alerts on panel face
- Vented panel enclosure
- Programmable inverters with easy configuration
- Speed control for 1 to 8 pump units
- Adjustable electronic pressure monitoring
- Adjustable pressure reduction
- Door interlocked isolator
- Two digital inputs
All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
Option: Stainless-steel inlet & outlet flexible connector, (recommended over rigid pipe when installing tank away from booster set)
Tanks Direct also supply variable domestic & commercial single and triple pumps, please contact us on 01643 703358.
