Sewage Pumping Station 1800Dia Twin Rigged 8900 Litre



Product Ref: MAXI8900T/6VX

MDPE Twin
  • Dimensions: H:3500mm
  • Diameter: 1800mm
  • Custom Delivery Required

    Delivery price on application.

    Request a quote

    Commissioning

    Pump Station Commissioning



    Full system inspection

    Levels inspection

    Manway check for obstruction

    Mount control panel (if not in place)

    Check correct load to panel

    Check correct cable size

    Check correct power supply

    Set the overloads

    Lower pumps via guiderail onto stools using an A-frame if required

    Pull pump cables through ducting

    Pull float cables through ducting

    Set floats to correct operating position

    Wire cables into control panel

    Fill system with water

    Full test of pump station

    Sign-off and certification

    Warranty and documentation provided

    Product Description

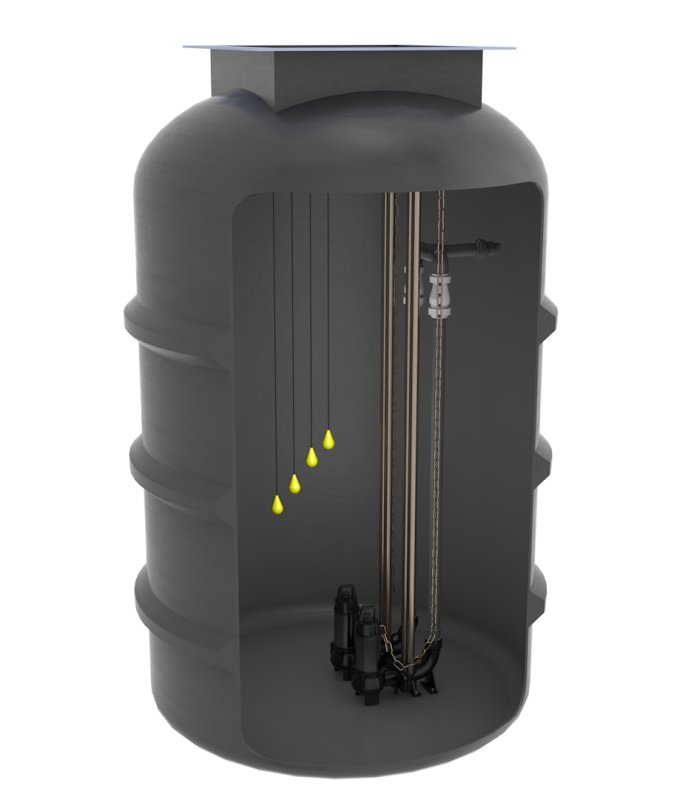

    Sewage Pumping Station 1800Dia Twin Rigged 8900 Litre - 3.5m Depth

    Twin Rigged MDPE - Package Sewage Pumping Station. A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards.

    The Twin Rigged 8900 Litre Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available and is designed with a depth of 3.5m. It can be used for various drainage applications, with the system also used for the transfer of sewage or waste water, all specially designed for easy installation. The Twin Rigged 8900 Litre Pump station is a compact sewage pump station suitable for small to large houses and also commercial applications. The Twin Rigged Pump Station is also available in 5000/6000/7300 Litre capacities and is particularly suitable when water or sewage is collected lower than the main sewer.

    All you need is supplied to you within the package, so you will just need to supply the pipework to and from the station, plus any fittings. A high water alarm is supplied as standard. The Pumping Station comes with a submersible pump with 50mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.


    Pump:

    • Cast iron / stainless steel construction
    • 50 mm (2") solids handling capacity -  50mm Macerator  – 65mm solids handling – 80mm solids handling.
    • Coolant filled motor
    • Mechanical seal
    • 10 M cable
    • Max 6 M lift
    • Max flow 5 L/sec
    • Float switch as standard
    • Controls
    • Twin control panel, c/w auto change over and high level alarm
    • 4 x 10 M float controls
    • 1 x float bracket


    Tank:

    • MDPE Tank
    • Dim: 1.8dia x 2.0deep – 1.8dia x 2.5deep – 1.8dia x 3.5deep
    • Capacity: 5000,6000,7300, 8900 Litres
    • 1 x 110 mm / 160 mm inlet seal to allow inlet to be drilled on site.
    • 100 mm cable duct.
    • 2" – 3” internal pipe work
    • 2" – 3”  non-return valve
    • 2" – 3” quick release coupling
    • 110mm cable duct



    Delivery

    All our Pumping Stations are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

    Product Details

    • Product Code: DPT
    • Material: MDPE
    • Twin or Single: Twin

    Delivery

    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.

    Offloading

    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

    HIAB

    HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

    If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

    Returns Information

    Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Tanks Direct's return policy now.
