Mikrofill 3 Single Pressurisation Unit



Product Ref: 120023

Free Delivery WRAS Approved

Estimated Lead time: 7 - 10 Working Days

Home Delivery

UK mainland delivery from FREE ex VAT

check delivery cost

updown

Technical Information

     General
 Approvals / Conformity Certification  WRAS Approved Product (1212069) UKCA, CE
 Warranty  2 Years
     Connections
 Cold Water Inlet  15 mm Compression
 System Outlet 15 mm Compression
 Drain (Via Tundish) 3/4'' BSP
 Maximum Inlet Pressure  5 Bar
 Maximum Cold Fill Pressure 4.7 Bar
 Nominal Flow Rate 14 l/ min
     Dimensions
 Height x Width x Depth (mm) 270 x 250 x 112
 Dry Weight (kg) 5

Downloadable Documents

Product Description

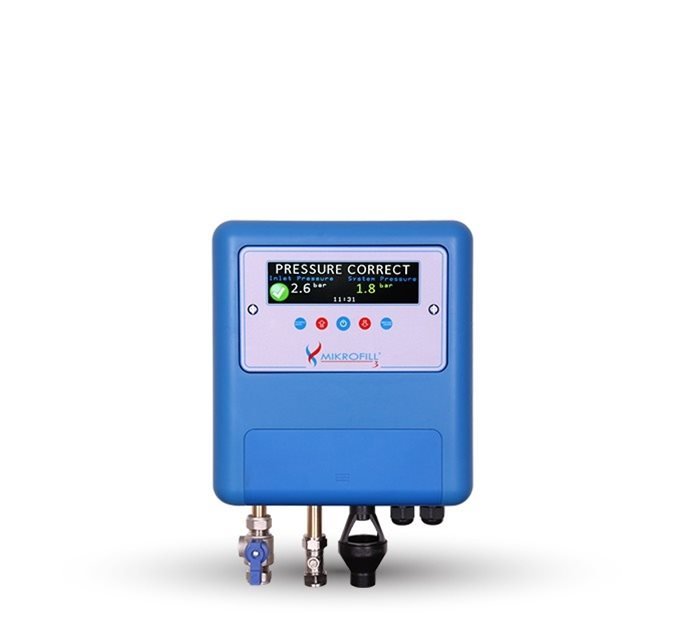

Mikrofill 3 Single Sealed Pressurisation Unit

Mikrofill is a system that efficiently fills a water system to an optimal pressure level to achieve the best flow. The Mikrofill is designed to be connected directly to a building's incoming mains/boosted water supply and fill a heating or chilled water system without the use of a pump.


Key Features

  • 97% more Energy efficient than some pump type units
  • Integral fluid risk category 4 backflow prevention - No RPZ valve required
  • Fills any LPHW/CHW system from empty - Connects directly to the mains/boosted water supply
  • Wall mounted unit only 270 mm high x 250 mm wide - Compact enough to fit in the smallest of plant rooms
  • Consumes 10 watts on standby and 30 watts fully operational per hour - 97% more energy efficient than some pump type units
  • Fill volume indicator - Aids water treatment calculation
  • Large colour screen display - Clear and concise instruction
  • Pre - commissioned packages available - No on-site commissioning required when sold as a package
  • WRAS Approved Product



Benefits

  • No RPZ valve required
  • Automatically monitors system and controls system pressure
  • Connects directly to the mains water supply
  • Provides early warning of system leakage and aids water treatment calculation
  • Flexible Installation
  • Clear status indication and intuitive set up
  • No on-site commissioning required



Delivery

All our Pressurisation Units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.





Product Details

  • Product Code: STP
  • Brand: Stuart Turner
  • Delivery: Free Delivery
  • Potable: WRAS Approved

Advantages over a RPZ Valve
