ABS Sulzer Sanimax MF154 HW W01*10 UKP



Product Ref: SMXMF154-HW/W01/10/UKP/10M

Free Delivery Sewage
  • Volume: 100ltr
  • Weight: 13.500kg
  • Dimensions: L:345mm W:400mm H:390mm
  • Estimated Lead time:3 - 4 weeks

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    updown

    Commissioning

    Pump Station Commissioning

    Full system inspection

    Levels inspection

    Manway check for obstruction

    Mount control panel (if not in place)

    Check correct load to panel

    Check correct cable size

    Check correct power supply

    Set the overloads

    Lower pumps via guiderail onto stools using an A-frame if required

    Pull pump cables through ducting

    Pull float cables through ducting

    Set floats to correct operating position

    Wire cables into control panel

    Fill system with water

    Full test of pump station

    Sign-off and certification

    Warranty and documentation provided

    Product Description

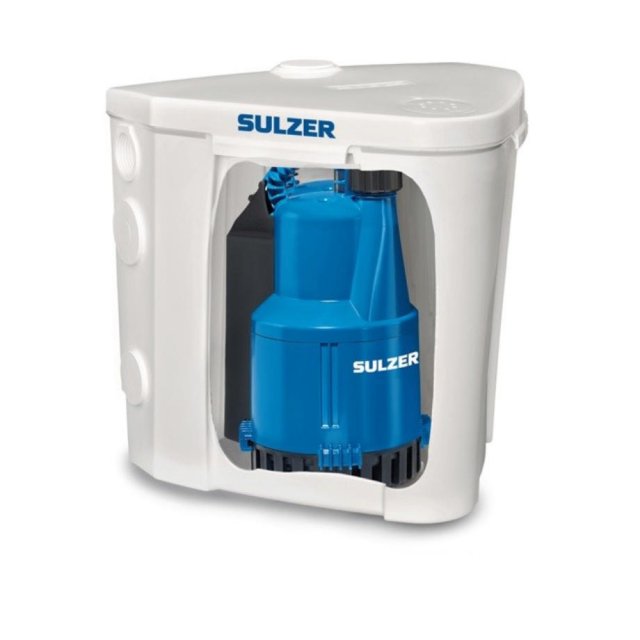

    ABS Sulzer Sanimax MF154 HW W01*10 UKP

    Complete wastewater pumping unit for installation at floor level and fitted with a submersible pump from the Robusta or MF ranges. Suitable for the removal of liquids containing solid particles up to 30 mm from wash-hand basins, domestic washing machines, or showers, from areas below the sewer level in accordance with EN 12050-2.

    Features

    • Ready-for-use, plug-in unit with Schuko plug.
    • Compact triangular design optimises space beneath a hand-wash basin.
    • Can be fitted with Robusta 202 TS or MF 154 & 324 pumps, complete with non-return valve and level control. A separate check valve should be used at heads over 5 m.
    • Solids handling up to 10 mm for Robusta, 20 mm for MF 154, and 30 mm for MF 324.
    • Seven ports (5 x 40 mm, 2 x 50 mm), ready-prepared with seals, which can be used for inflow, discharge, power cable, or flexible hose connection to a washing machine (¾'' adaptor supplied).
    • Odour-tight lid with odour lock and venting, including charcoal odour filter and overflow protection.
    • Alarm float switch available as accessory.
    • Sanimax R 202C for aggressive liquids. It is the duty of the user to check the suitability of the materials for the particular application.
