2000 - 11000 litre Klargester Grease Separators



Product Ref: NSG04

Free Delivery HIAB Available GRP Below Ground

Custom Delivery Required

Delivery price on application.

Request a quote

Product Description

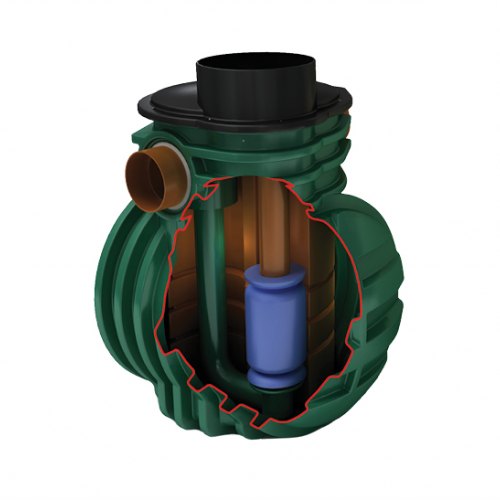

Klargester Grease Separator Range - 2,000 to 11,000 litre capacity

Klargester Grease Separators are an effective and hygienic method of separating fat and grease from wastewater flow.

Grease Separators are designed for catering applications and suitable for use in ....

  • Restaurants
  • Hotels
  • Public houses
  • Canteens

Key Features

  • Range capacities from 500 - 11000 litres and flow rates of 1 - 24 litres/sec.
  • Greatly reduces drain blockages.
  • Improves performance of septic tanks and field drains
  • Prevents contamination of small sewage treatment plants.
  • Protects mains drainage system from grease blockages.

How it works

Grease separators allow fats and grease to naturally separate out from water, allowing their removal prior to the wastewater reaching the drainage system. The separator should be installed close to the source of contamination before any foul waste can enter the drainage flow and to suit the expected liquid temperature.

Klargester Grease Separators: Sizes

Model Capacity(Litres)  Flow (Litres/Sec)
NSG04 2,000 4.0
NSG06 3,000 6.0
NSG09 4,000 9.0
NSG14 6,000 14.0
NSG18 8,000 18.0
NSG24 11,000 24.0





Grease Range Sizing Table

Meals Per Day

Standard Meals

Fast Food

Fine Cuisine

40

NSG01

NSG01

NSG02

60

NSG02

NSG02

NSG02

80

NSG02

NSG02

NSG04

100

NSG02

NSG04

NSG04

200

NSG04

NSG06

NSG09

300

NSG06

NSG09

NSG14

500

NSG09

NSG14

NSG18

700

NSG14

NSG18

NSG24

900

NSG18

NSG24

-

1,300

NSG24

-

-



The optional GA-1 Grease Monitor Alarm measures the thickness of grease buildup within the separator.

Really easy to install, has remote monitoring features, supports all kind of grease separators.

Product contains a GA-1 Control Unit-GA-SG1 Sensor-Cable Joint

Complying: EN 1825 & DIN 4040 norms



Product Details

  • Product Code: KLA
  • Delivery: Free Delivery
  • HIAB Available: HIAB Available
  • Material: GRP
  • Tank Use: Below Ground
